Core Value:Essential for ensuring product safety and meeting regulatory hygiene standards in food processing.
Detection Technology:Utilizes powerful X-ray scanning to identify a wide range of foreign objects.
Detects: Metals, stones, glass, high-density plastics, and rubber.
Provides high-resolution imaging for pinpoint precision, even on the smallest contaminants.
Key Benefits:
Assured Safety & Compliance: Safeguards consumer health and protects your brand reputation by ensuring products are free from physical hazards.
Operational Efficiency:Designed for seamless integration into existing production lines.Features user-friendly controls and high-speed inspection to maintain throughput.
Data-Driven Optimization: Real-time analytics and reporting provide insights to continuously improve your quality control processes.

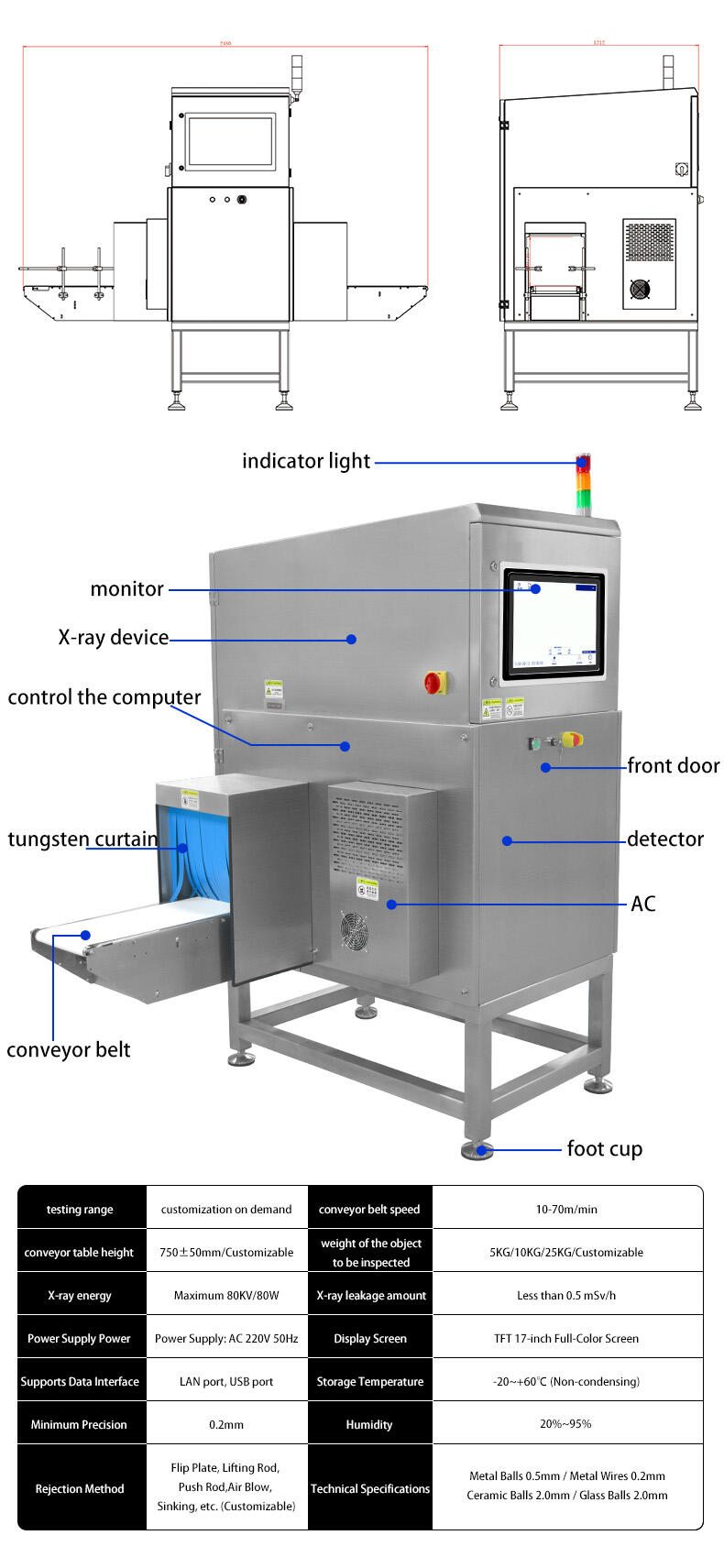

Product Dimension Parameters
| testing range | customization on demand | conveyor belt speed | 10-70m/min |
| conveyor table height | 750±50mm/Customizable | weight of the object to be inspected | 5KG/10KG/25KG/Customizable |
| X-ray energy | Maximum 80KV/80W | X-ray leakage amount | Less than 0.5 mSv/h |
| Power Supply Power | Power Supply: AC 220V 50Hz | Display Screen | TFT 17-inch Full-Color Screen |
| Supports Data interface | LAN port, USB port | Storage Temperature | -20~+60°C(Non-condensing) |
| Minimum Precision | 0.2mm | Humidity | 20%~95% |
| Rejection Method |
Flip Plate, Lifting Rod, Push Rod,Air Blow, Sinking,etc.(Customizable) |
Technical Specifications |
Metal Balls 0.5mm /Metal Wires 0.2mm Ceramic Balls 2.0mm/ Glass Balls 2.0mm |
Equipment principle
X-rays have high penetration ability and can penetrate many
substances that are opaque to visible light.
An X-ray machine is a machine that uses the perspective
ability of X-rays to penetrate objects and obtain images
through detectors. The images are then analyzed technically
to determine whether the product is qualified.

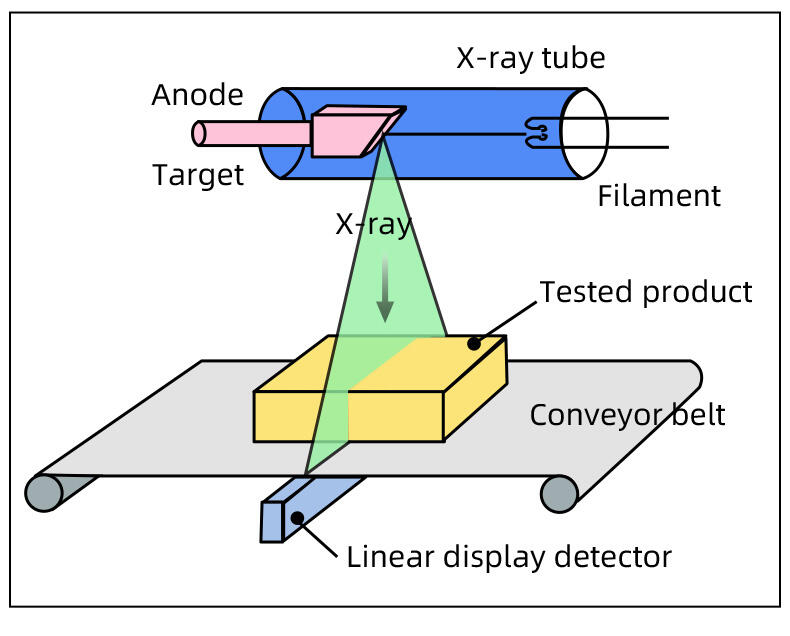

Principle diagram

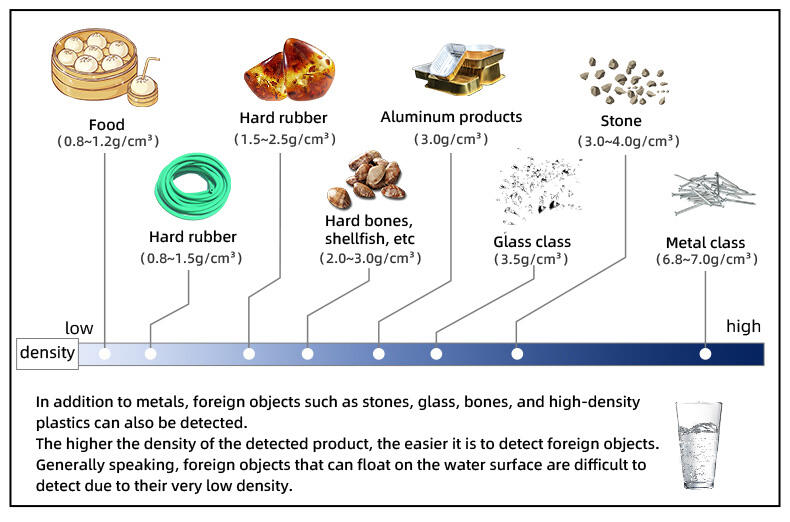

Can detect foreign objects of various materials
(Foreign object detection can be used in conjunction with other detections)

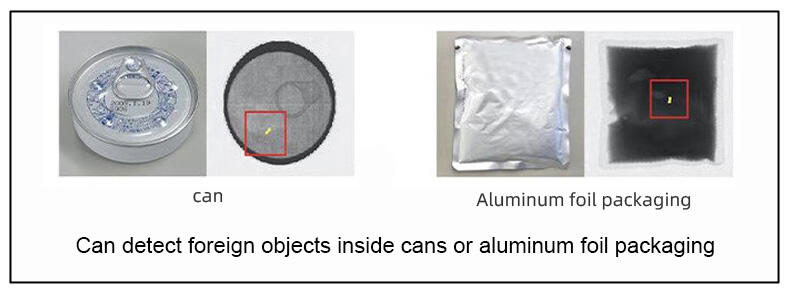

It can also detect foreign objectsinmetal packaging

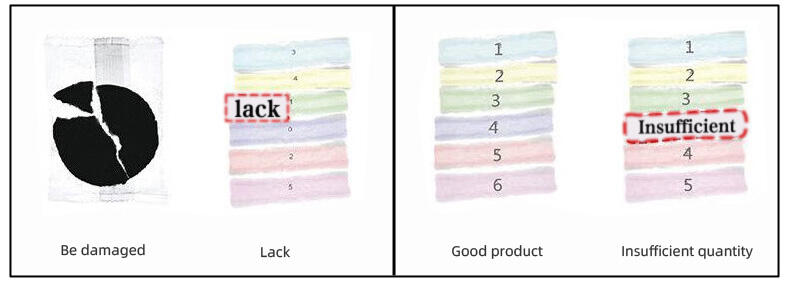

Shape detection Quantity detection

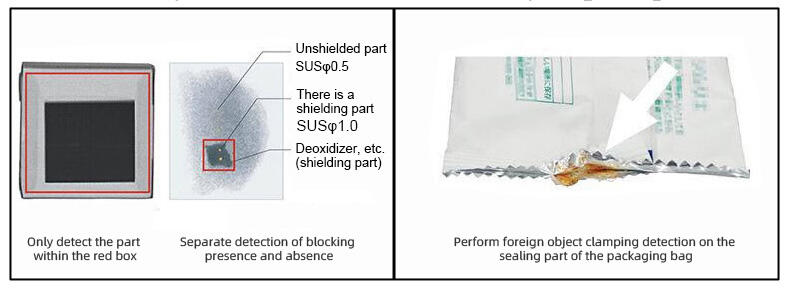

Shielding detectio Sealing clip inspection
Industry Use Scope
Detect metal foreign objects mixed into products or raw materials in industries such as food，
seafood processing, toys, clothing, footwear, leather, knitted fabrics,
and wood during production
Food industry
Aquatic/Poultry Products
Other industries
STRATEGIC PARTNERS
WOODEN BOX PACKAGING
FREIGHT WORLDWIDE
STAPLING WOODEN BOXES TO ENSURE
SAFE TRANSPORTATION OF GOODS
The Food Foreign Object X-ray Machine is an essential tool for quality assurance and hygiene compliance in the food processing industries. This advanced technology employs powerful X-ray scanning to detect and eliminate foreign objects, including metal fragments, stones, glass shards, and more, from your food products with unparalleled precision.
Designed to meet the rigorous demands of the food industry, our X-ray machine ensures that your products are safe for consumption and meet all relevant safety and hygiene standards. Its high-resolution imaging capabilities allow for detailed inspection of even the smallest foreign objects, safeguarding your brand reputation and protecting consumer health.
Integration of this machine into your production line is seamless, with user-friendly controls and fast inspection speeds that maintain your operational efficiency. Real-time data analysis and reporting provide you with insights into production trends, enabling you to make informed decisions to optimize your quality control processes.
Choose the Food Foreign Object X-ray Machine for quality assurance and hygiene compliance that you can trust. With its advanced technology and reliable performance, this solution is the perfect addition to your food processing operations.
