YW-910K Food Metal Detector

YW-910k All metal detector

Detection Scope:

Identifies metal contaminants (e.g., iron, copper, aluminum, stainless steel) in bulk, bagged, bottled, or boxed products across industries like textiles, plastics, food, and pharmaceuticals.

Core Features:

High Precision & Stability: Advanced digital technology with fully encapsulated detection coils ensures accurate results and strong anti-interference capability.

Intelligent Recognition: Self-learning function automatically adapts to product characteristics, effectively suppressing "product effect" interference.

User-Friendly Operation: Simple interface with an LCD screen for easy parameter setting and storage of approximately 24 product profiles.

Design & Compliance:

Durable Construction: Modular components for easy maintenance, with vibration-resistant and dust-proof design for harsh environments.

International Standards: Complies with HACCP, GMP, CE, and FDA requirements.

Inquiry

Overview
Inquiry
Related Products

YW-910K Touch Screen Food Metal Detector

Intelligent & Stable: Auto-calibration on power-up with automatic phase balancing to counteract product effects (moisture, sugar, salt) for highly accurate results.
Versatile Application: Ideal for both wet and dry materials, even those with challenging compositions.
User-Friendly & Efficient: Stores up to 24 product profiles. Features a color touchscreen, multi-language support, and password protection for intuitive operation.

Technical Data Sheet

model		YW-910K
Detection channel height(фmm)		4010	4012	4015	4020	4025	4030	4035
Sensitivity	Fe (фmm)	0.8	1.0	1.2	1.5	2.0	2.5	3.0
	Non-Fe (фmm)	1.2	1.5	2.0	2.5	3.0	3.5	4.0
	SUS (фmm)	1.5	2.0	2.5	3.0	3.5	4.0	4.5
Body material		The whole machine is made of 304 stainless steel
Alarm method		Automatically shut down when foreiqn matter is detected, and output a 12V buzzer alarm sound (customized: Flap,Air blow,Pusher,Swing arm,Sink.)
Machine size		(L:1500 W:850H:950) please refer to the actual product for customized product size
Machine weight		≈200kg
Power		Power:220V 50Hz Power:120W
Weighing capacity		<20 kg speed:25~30m/min (not adjustable)
Working desk		Height:700mm(customizable height)

Touch screen

Does your production line also

existThe following troubles?

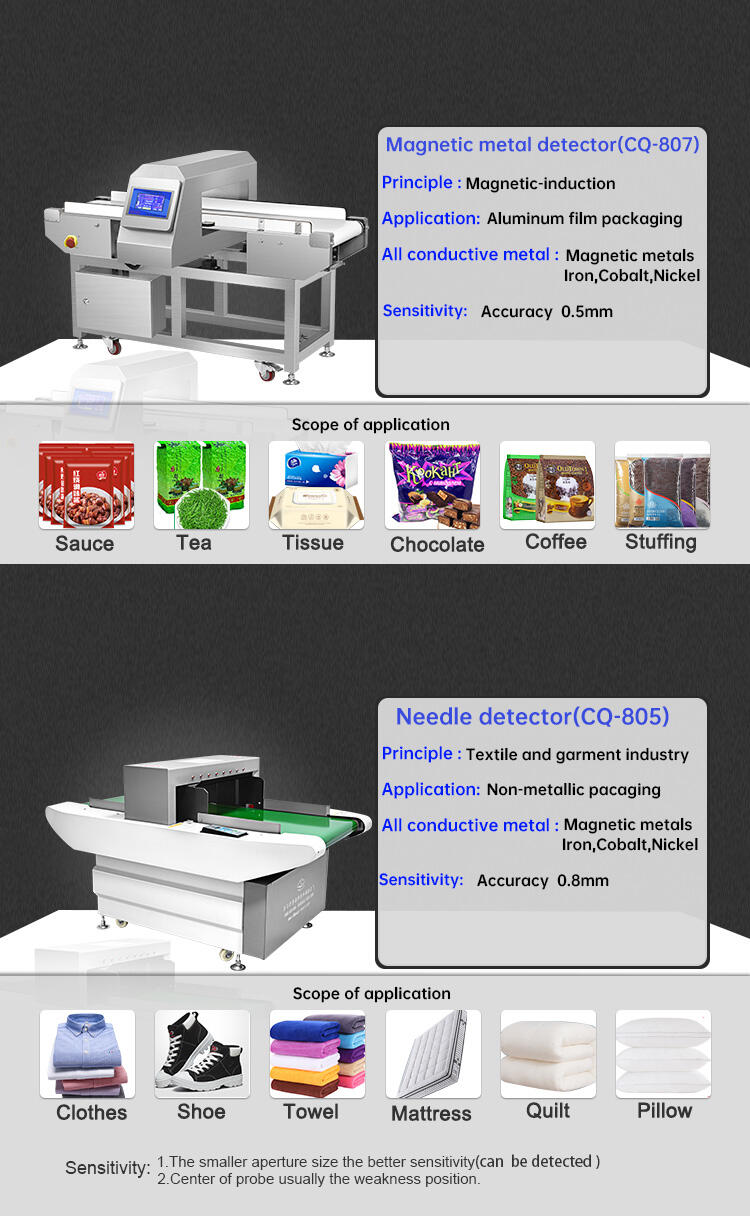

疑问详情页2.jpg 疑问详情页3.jpg

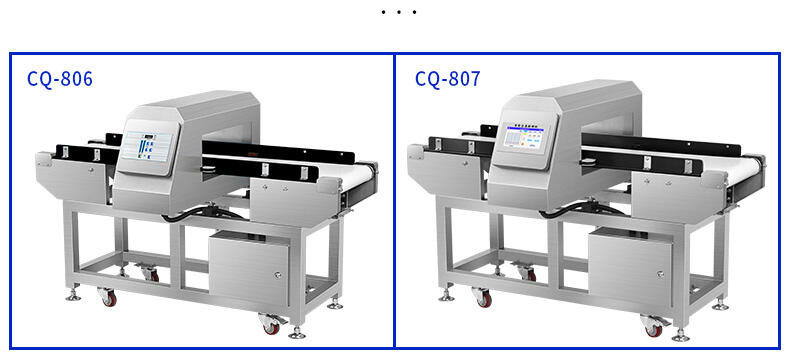

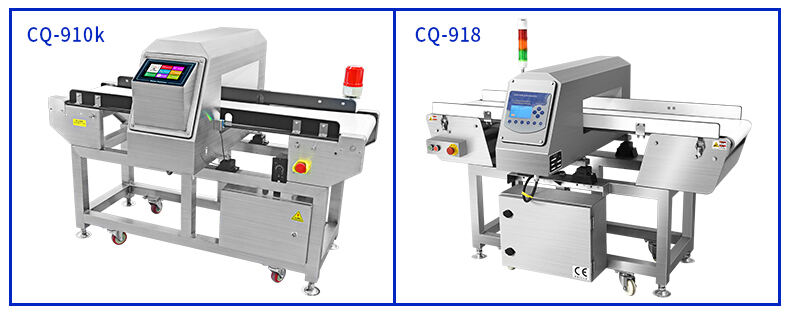

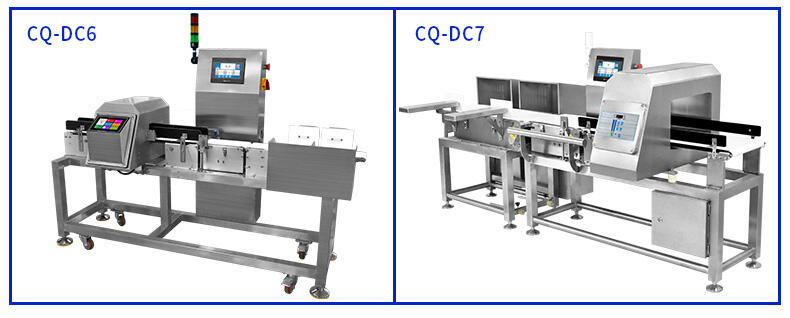

Product Moder

806_21详情页修改.jpg 裁剪详情页.jpg

Industry Use Scope

Suitable for detecting metal foreign objects mixed in the production of products or raw materials inindustries

such as food, seafood processing, toys, clothing, footwear, chemicals, leather, knittedfabrics, wood, etc

裁剪详情页2.jpg FAQ
Q1: Are you a factory?
A1:Yes,YWANTEST company is a professional manufacturerengagedin automatic Metal detector

and weighingequipment.We have ourown R&D, production, marketingand after-sales service team.
Q2:Why to choose you?

A2:We are a factory experienced in the field of automaticMetal detector and weighing equipment,

integrating R&Dproduction,marketing and after-sales service.
Q3:How to select the suitable specification of Metaldetector machine?

A3:Please tell us what kind of product to process and howmany grades you require.

We will recommend the suitablemachine for you.
Q4:What are the payment terms?
A4:Fob/C&F:TI, or by Alibaba trade assurance service.negotiable.
Q5:How to install and operate the machine?

A5:We will provide you the manual in detail, as well as theinstruction video for your

reference or online guidance helpincluding after-sales service.
